BSME Points

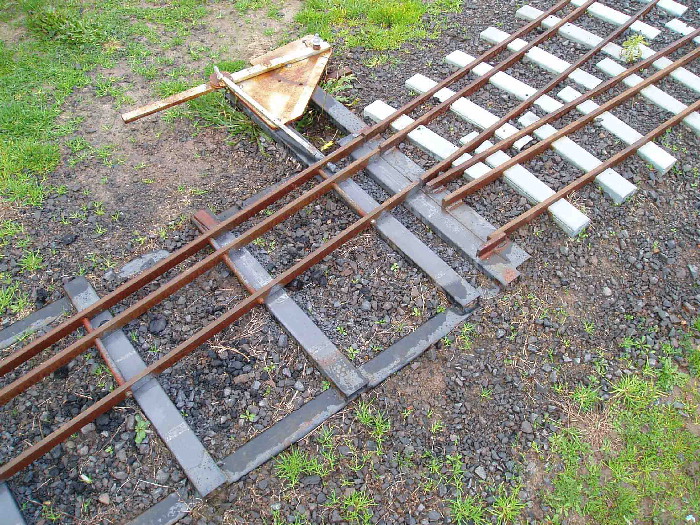

Points set to the left"

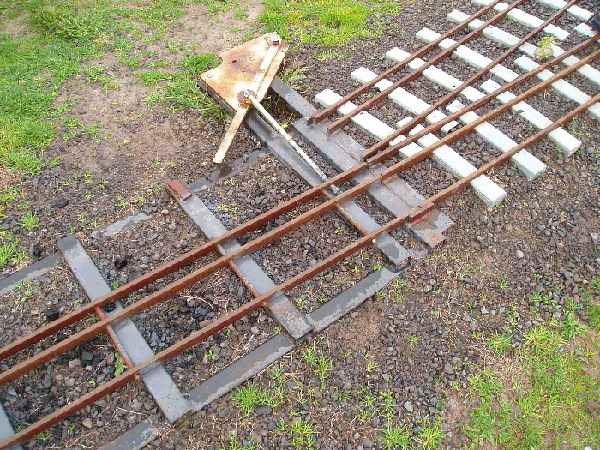

Points set to the right"

The two photographs show the points set left and right, there are no frogs used in these points and they are simple to construct and work very well. While the points are currently manually operated it is intended that these points will be remotely operated in time.

The design for these points came from a series of articles titled 'Scale Rail Construction' by Jim Lyman in "Live Steam" magazine.
See "Live Steam" in 1994 as follows;

Part 1 in July/August 1994,

Part 2 in September/October 1994 and

Part 3 in November/December 1994.
